Ethernet Temperature & Humidity Data Logger

This product has been replaced by the WH645

Place these data loggers throughout your facility and receive all data automatically at your PC.  No retrieving data from loggers.  This is the easiest and most cost-effective way to create a scalable monitoring network.

  • Email and Text alerts available
  • Eliminates the need to change charts and pens
  • Data automatically downloaded to your computer wirelessly
  • Loggers continue to log in the event of a power outage

These loggers, while wired, are compatible with the WiZARD2 monitoring system and software. Use them in conjunction with your WiZARD2 system or without! They allow you to monitor locations that would have previously been cost prohibitive to monitor wirelessly.

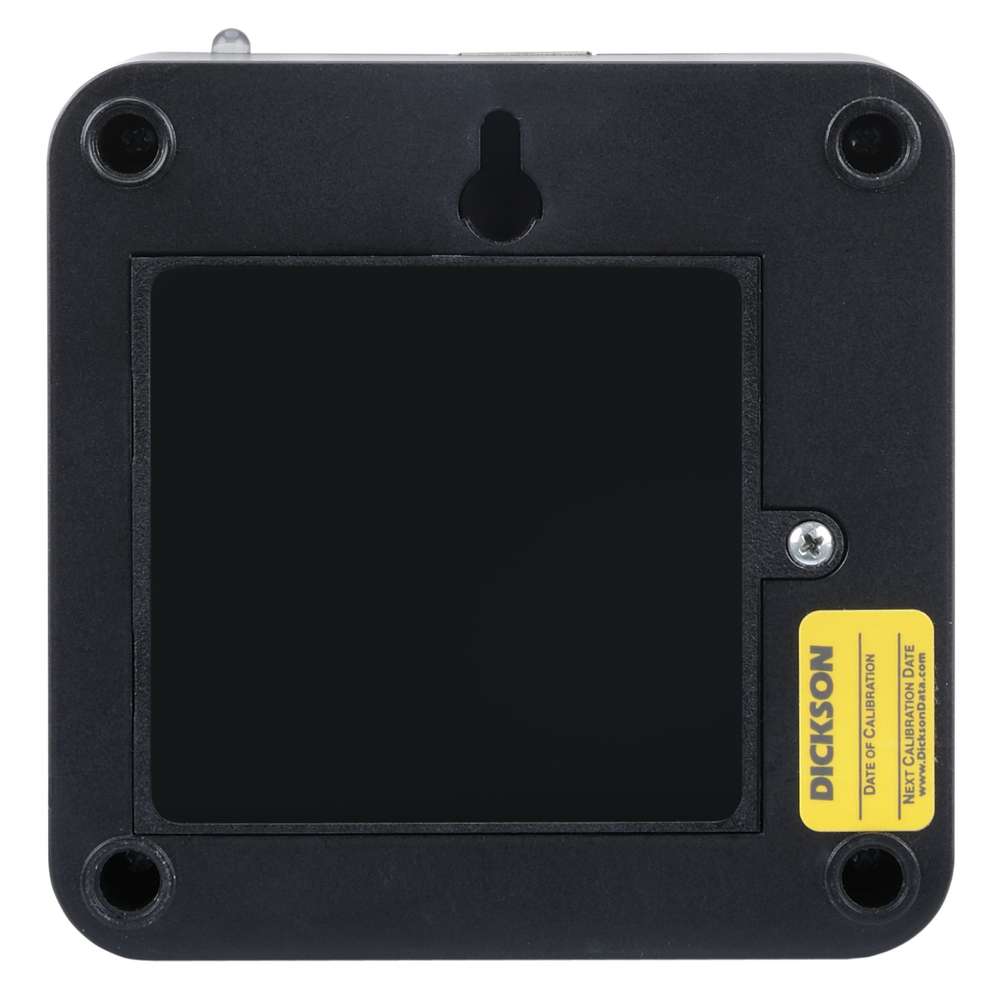

Wh545 back 1288

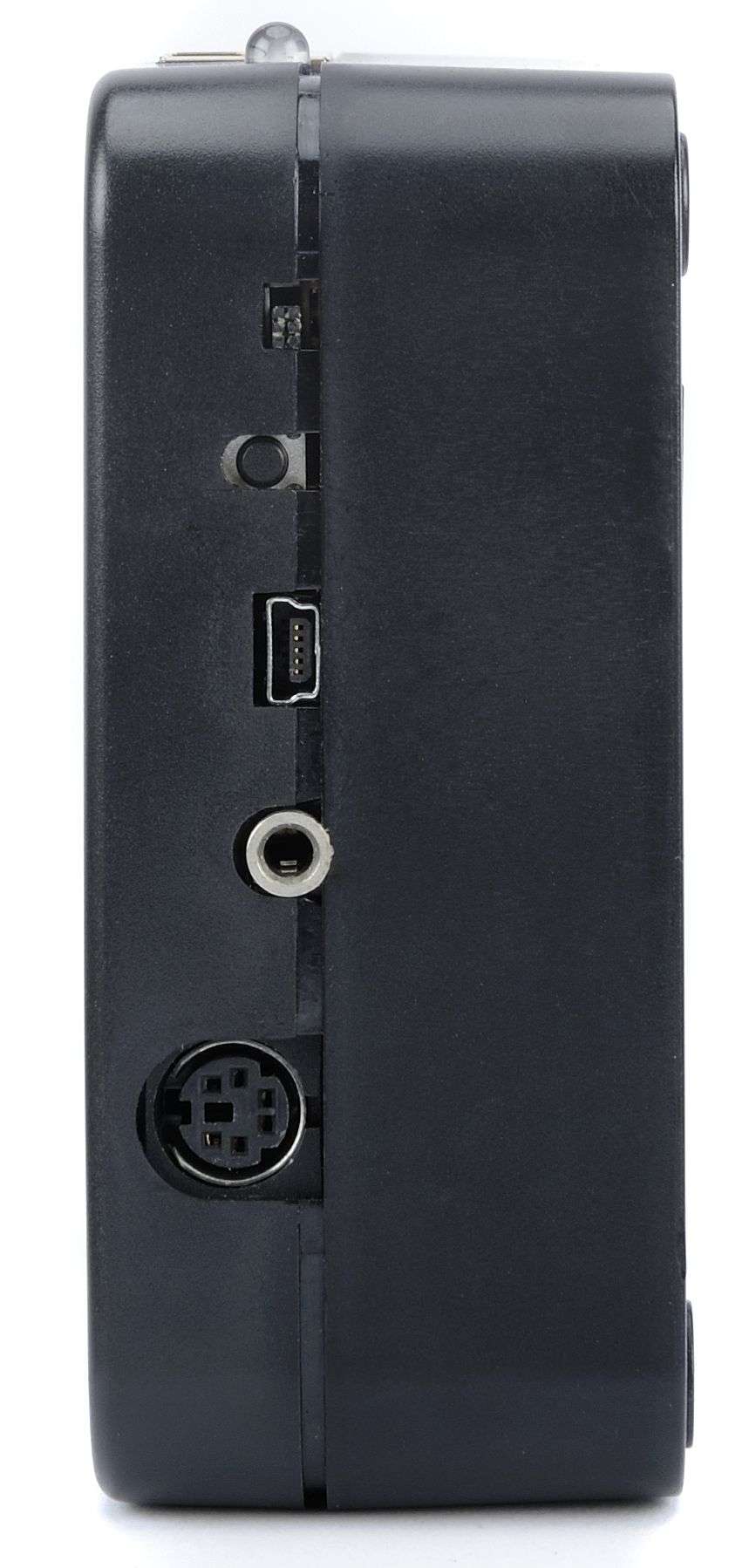

Wh545 lft side 1293

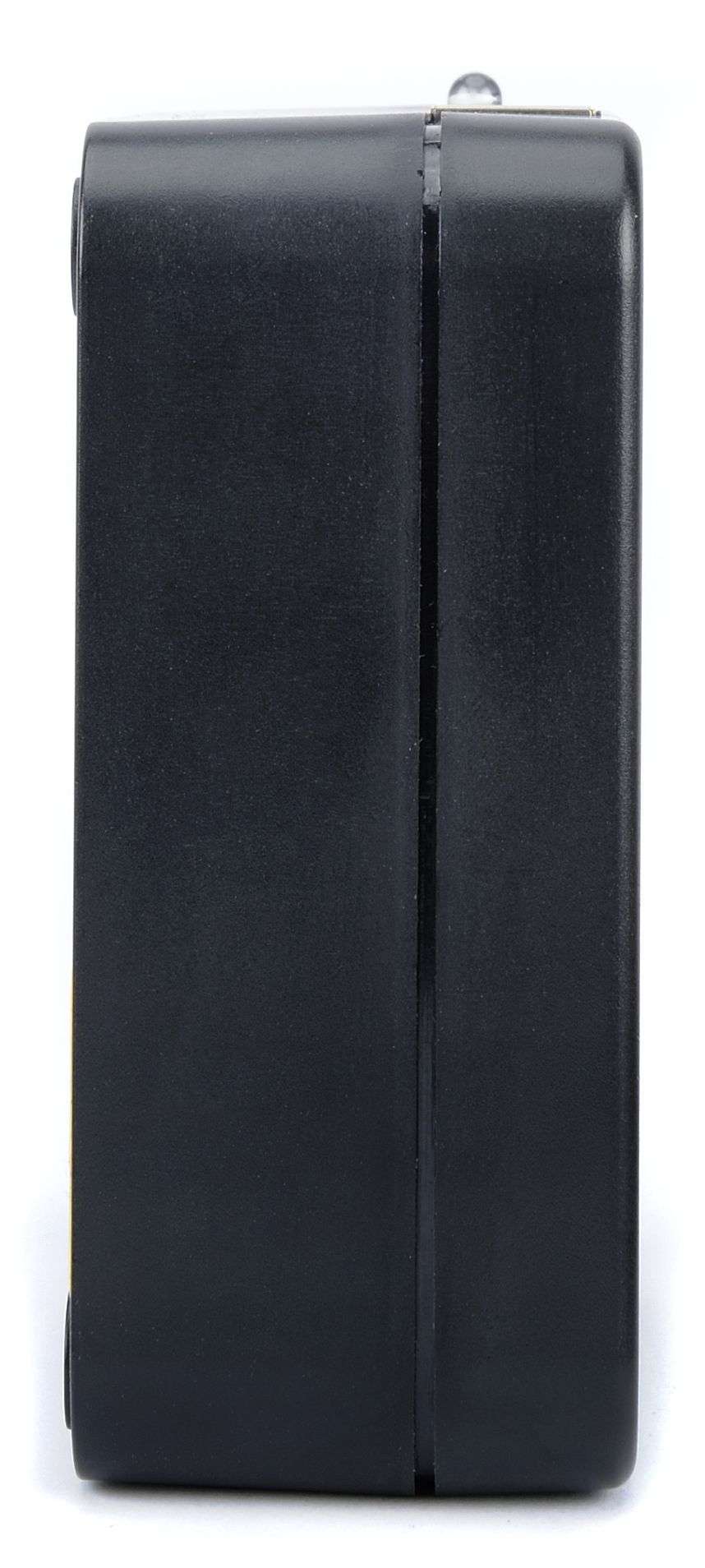

Wh545 rt side 1295

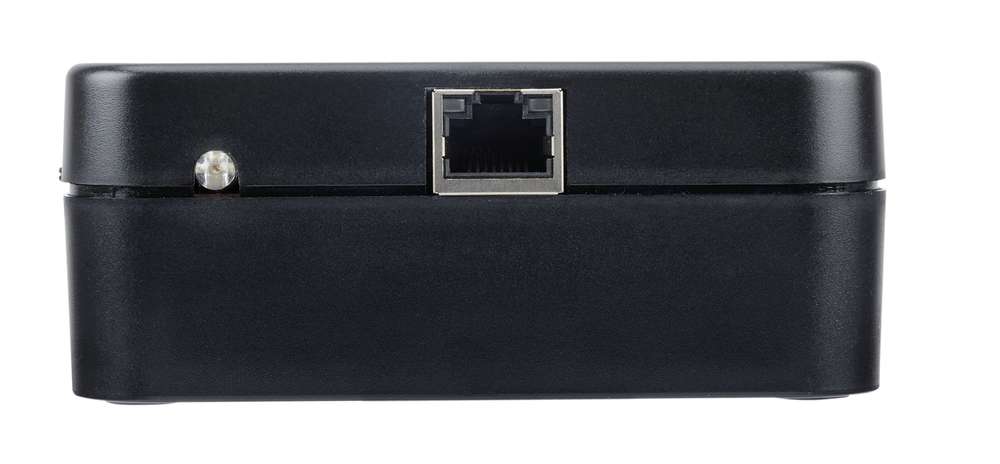

Wh545 top 1296

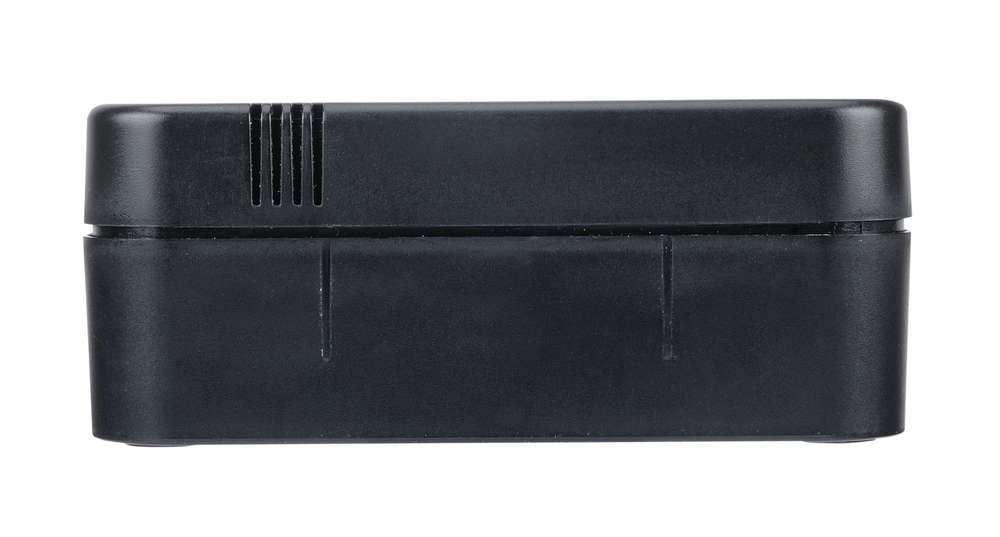

Wh545 bottom 1289

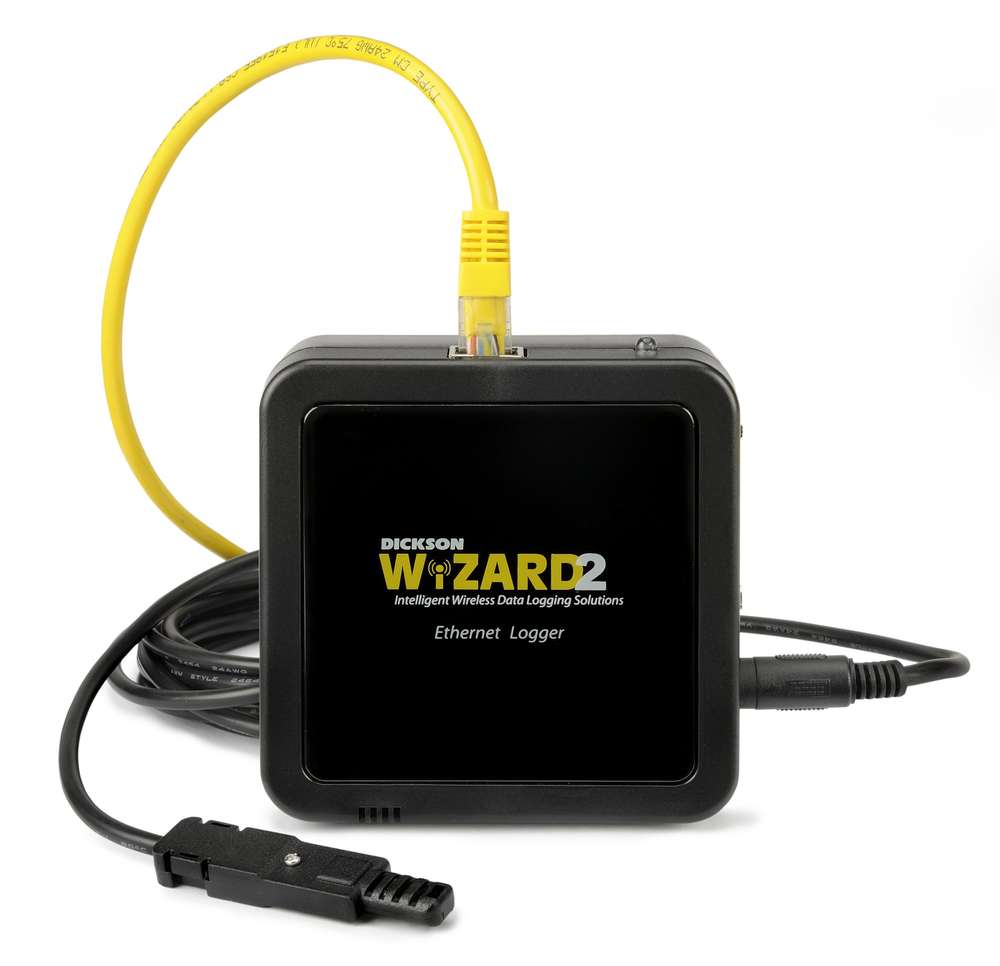

Wh545 front withenetcable 1291

Download Images: Print Quality | Hi-Res


Important Information

DicksonWare Software is needed to communicate with this product and is sold separately.

Dickson Expert Services

Our Dickson Data Division has specially trained representatives to address the needs of customers with large installations or unique demands. Please call 888-452-4626.

  • Alarm Type High/Low, Low Battery, Calibration Due, Lost Communication
  • Ambient Operating RH Conditions 0-95% RH non-condensing
  • Ambient Operating Temperature Conditions -22 to 122F (-30 to 50C)
  • Approvals RoHS, CE
  • Battery Backup 4 AA Batteries
  • Battery Life (Avg) 1 Month/Back-up Only (at 2 Minute Sample Rate in Moderate Conditions). Logger will save logged data, but will not send data when running on battery power only.
  • Cable Details For Setup Only: USB - Male Series A plug to 5 pin Male Series B mini plug (6 ft).; Standard Ethernet (7 ft)
  • Calibration Options N100 , N300, N400, & N520
  • Channels CH1: Temperature, CH2: Humidity
  • Data Capacity 32,000 (16,000 per channel)
  • Dimensions 1.7 x 4.25 x 4.25in
  • Download Type Ethernet
  • Enclosure Black; ABS Plastic Clam Shell
  • Humidity Accuracy +/-2% RH from 0 to 60%; +/-3% RH from 60 to 95%
  • Humidity Range 0-95% RH non-condensing
  • Humidity Sensor Type Digital RH Sensor
  • IP Rating 21
  • Included Accessories USB Cable, AC Adapter, 4 AA Batteries, Quick Start Guide
  • Mounting Options Free Standing or Wall Mount (With Keyhole)
  • Network Requirements If Host PC and Logger are on separate subnets, both Logger and Host PC subnets must be able to see each other. For best results, assign a fixed IP Address to the Host PC. If preferred, logger can be setup using DHCP (contact Dickson Technical Support for
  • Note on Alarm Type All alarm conditions will generate a pop-up notification in the Dickson WiZARD Software. Text/Email notification available with use of WiZARD SECURE Software.
  • Notes The WH245 Logger reads temperature and humidity and sends data back to the Receiver at regular intervals.
  • PC Requirements HelpMinimum of 2 GB RAM; Windows XP (with service pack 3) and Windows 7; 2 available USB ports
  • Power Cord 6 ft
  • Power Source 120 to 240 VAC, 12 VDC (INTL fittings available)
  • Power Source Input AC 100-240 0.5V 60/50 Hz
  • Power Source Output DC 9V, 1A
  • Power Status Indicator Red/Green/Blue (RGB) LED
  • Remote Probe Dimensions Houses thermistor and RH sensor in polycarbonate plastic; 1.5" x 0.5" (1.25cm x 4.5cm)
  • Remote Sensor Length 10 ft
  • Response Time 30 Seconds to 63% of Full Scale
  • Sample Interval User Selectable (from 10 seconds to 1 hour in 10 second intervals)
  • Software Options W2 Version 1.2.0.11 or higher
  • Storage Conditions -22 to 158F (-30 to 70C)
  • Storage Conditions RH 0-95% RH non-condensing
  • Temperature Accuracy +/-0.8F from 20 to 122F 1.8F Remaining (+/-0.44C from -7 to 85C 1C Remaining)
  • Temperature Range Help-22 to 185F (-28 to 85C)
  • Temperature Sensor Type Digital Temperature Sensor
  • Unit Weight 3 lbs
  • Units/Pkg 1
Why should I calibrate?

All instruments lose accuracy over time due to normal usage and the environmental conditions to which they are exposed.

How often should I calibrate?

For most applications, the recommended calibration interval is every twelve months.

N100 1-Point NIST Traceable Calibration $99.00 Add
N300 3-Point NIST Traceable Calibration $156.00 Add
N400 3-Point Ultima NIST A2LA Accredited Calibration $269.00 Add
What is NIST Calibration?

NIST stands for the National Institute for Standards and Technology. This organization is responsible for maintaining the master for different measurements, such as the standard "foot", standard, "second", or standard "pound". NIST also maintains the standard for temperature, humidity and pressure.

NIST Traceable means that the measuring standard can be traced directly back to the master standard maintained by the NIST organization.

NIST-Traceable does not tell you the measurement accuracy of a metrologty service in any detail. Only metrology services that can document their ISO 17025 standard provided data on their best measurement uncertainty.

$44.00
Probe Dust Filter

Probe Dust Filter - prolong the life of your instrument.

$32.00
AC Adapter

AC Adapter

$249.00
Calibration Software

Logger Calibration Software

$420.00
Wireless Wizard2 IQOQ Validation Package

Wireless Wizard2 IQOQ Validation Package

$89.00
WiZARD2 Wireless Software with Email and Text Alerts

WiZARD2 Wireless Software with Email and Text Alerts (Software Only)

$199.00
WiZARD2 Wireless 21CFR11 Secure Software

WiZARD2 Wireless 21CFR11 Secure Software (Software Only)

For more information on this product and other Wizard 2 products see the Wizard 2 page.
