Understanding the Events Log / Audit Trail

The Events Log (audit trail) automatically records information about how your organization is using the DicksonOne System. The user name, time and date, device (when applicable), and a brief notation are added to the log when any of the following events occur:
  • Users log in or out of the DicksonOne Web Portal
  • Device or location information is added or changed
  • Alarms are added or changed
  • Users are added or their permissions changed
  • Data is exported

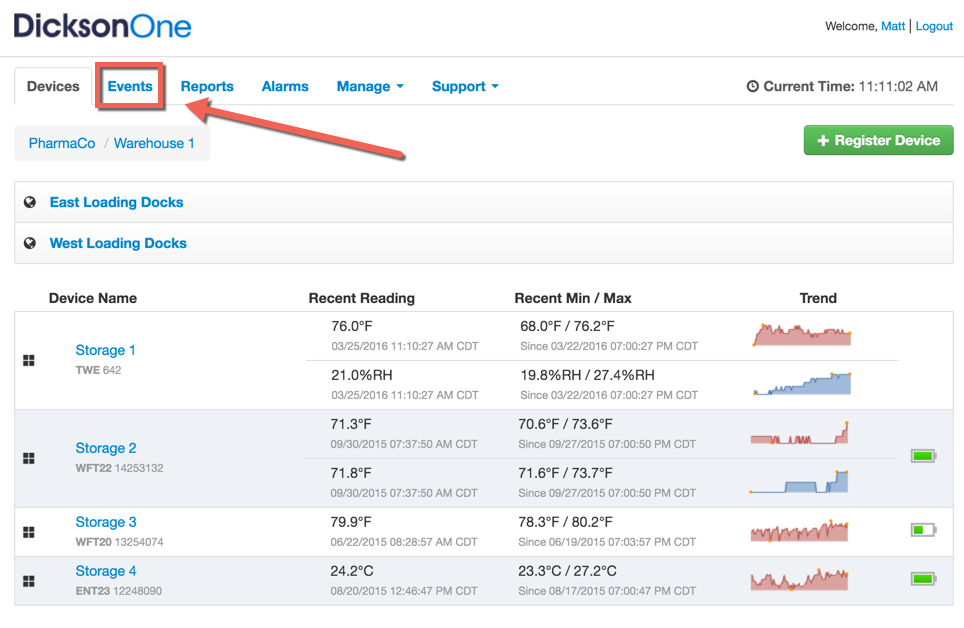

  • Annotations are made or changed in the graph area.To view the Events Log, click
'Events' on the top of the page.

Details 696

On the events page you'll see the following:
  1. Time zone - changes the time zone the events are reported in (defaults to browser's time zone)
  2. Filter - filter the results to exactly what you want (more below)
  3. Export - export all events or just a filtered set to a CSV file
  4. Event Detail - Each line is an individual event or set of changes
Fitler 697

Filtering
You can filter the audit trail based on a number of things:
  • A specific device or set of devices
  • A specific user or group of users
  • Type of event
  • Date Range
Event log audit trail expand collapse gif 698

Details
The event log captures a number of different types of data including:
  • Account - anything relating to account settings (company name, billing, security policies)
  • Alarm - anything related to the creation, deletion, editing, pausing, commenting, or acknowledgement of an alarm (not including an alarm being triggered)
  • Annotation - A user has added an annotation to the graph of a device
  • Device - A user has added, deleted, or edited a device
  • Export - A user has exported data for a device
  • Location - A user has added, deleted, or edited a device
  • User - A user has been added, deleted, or edited a user
  • Report - A user has created, deleted, or edited a report
  • System - The system has performed an action based on alarms or other programmed behavior (this includes alarms that were triggered)

Note
  • The site will do it's best to guess what zone you're in based on the timezone of the first logger in your account, but you can always change it
  • The device may not be located in your timezone!
  • You can only track events for users who have and use their own account.
