Touchscreen

This product has been replaced by the TSB

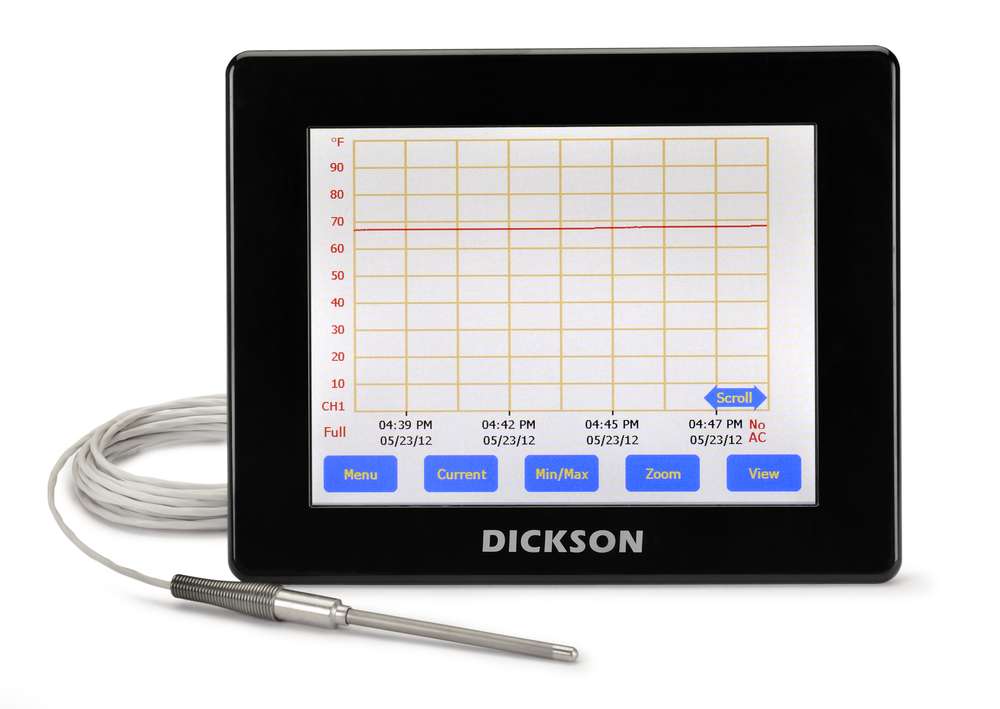

This may be the coolest instrument we have ever developed! It has a touchscreen digital display with full-graphing capabilities which means your complete temperature history is at your fingertips - with scrolling and zoom.  The FT660 is equipped with a Resitance Temperature Probe (RTD). It is great for high accuracy accoss a wide temperature range. With high functionality, this unit is designed to work without software.  Software is only needed if you want to download the data to a PC.

  • One high accuracy RTD probe
  • 4.1" x 5.5" (104mm x 140mm) Touchscreen Display
  • Audio/Visual Alarms
  • Fahrenheit or Celsius
  • Flash Card Data Download ready

To learn more about Replaceable Sensors and their benefits click HERE.

2GB SD Card not included with unit.

Ft660 straight on 1 1663
R600 probe 12244
Ft660 left angle 12313
Ft660 rt angle 12314
Ft630 back 12311
Ft630 rt side 12312
Ft660 straight on 2 12315
Ft660 straight on 4 12316
Ft660 straight on 7 12317

Download Images: Print Quality | Hi-Res


Important Information

DicksonWare Software is needed to communicate with this product and is sold separately.

Dickson Expert Services

Our Dickson Data Division has specially trained representatives to address the needs of customers with large installations or unique demands. Please call 888-452-4626.

  • Alarm Type Audio/Visual
  • Ambient Operating RH Conditions 0 to 95% RH non-condensing (Logger Only)
  • Ambient Operating Temperature Conditions 0 to 122F (-18 to 50C)
  • Battery Backup 12 Hrs (Re-chargeable batteries included; Hardwired)
  • Cable Details USB - Male Series A plug to 5 pin Male Series B mini plug.
  • Calibration Options N100 , N300, N400, & N520
  • Channels CH1: Temperature; CH1: Temperature (F/C)
  • Data Capacity 32,000
  • Dimensions 1.4 x 8.5 x 6.9in (3.5 x 21.6 x 17.5cm)
  • Display Dimensions Height 5
  • Display Dimensions Width 6.4
  • Display Type Touchscreen
  • Display Update Rate Varies with logging interval
  • Displays Min/Max Yes
  • Download Type USB / Flash Card
  • Flash Card Option SD Card (2GB or less)
  • IP Rating 21
  • Key Features Touchscreen, multiple screen views, on-screen zoom and scroll, software optional, user customizable sample rate, temperature scales and unit of measure
  • Minimum Software Version Required 17.6.0
  • Mounting Options Mounting Bracket (Included)
  • Power Cord 6 ft
  • Power Source 120 to 240 VAC, 12 VDC (INTL adapters available)
  • Remote Probe Dimensions 3" length; .101" diameter (cord only); .189" (probe tip only); .441" (probe strain relief between cable and tip)
  • Remote Sensor Length 6 ft (single 10 ft extension cable available without sacrificing accuracy)
  • Remote Sensor Type Resistance Temperature Sensure (RTD) - Hard wired
  • Required Software A016, A026, N525 (all optional)
  • Response Time 1 Minute to 63% of Full Scale
  • Sample Interval User Selectable via Time Scale (See Product Manual for more details)
  • Temperature Accuracy +/-0.5F from -148 to 350F (+/-0.3C from -100 to 176C)
  • Temperature Range Help-148 to 350F (-100 to 176C)
  • Temperature Sensor Type Field Replaceable with RTD
  • Unit Weight 1.15 lbs
  • User Calibration with SW400 Yes
  • Warranty 12-Month Limited
Why should I calibrate?

All instruments lose accuracy over time due to normal usage and the environmental conditions to which they are exposed.

How often should I calibrate?

For most applications, the recommended calibration interval is every twelve months.

N100 1-Point NIST Traceable Calibration $99.00 Add
N300 3-Point NIST Traceable Calibration $156.00 Add
What is NIST Calibration?

NIST stands for the National Institute for Standards and Technology. This organization is responsible for maintaining the master for different measurements, such as the standard "foot", standard, "second", or standard "pound". NIST also maintains the standard for temperature, humidity and pressure.

NIST Traceable means that the measuring standard can be traced directly back to the master standard maintained by the NIST organization.

NIST-Traceable does not tell you the measurement accuracy of a metrologty service in any detail. Only metrology services that can document their ISO 17025 standard provided data on their best measurement uncertainty.
