Touchscreen

This product has been replaced by the TSB

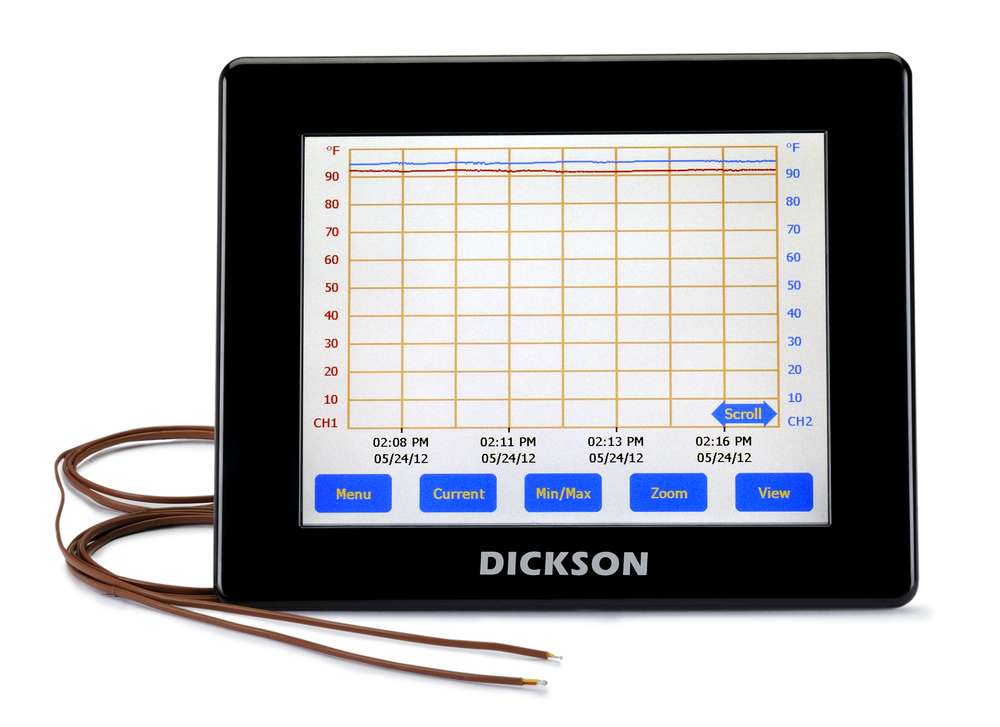

This may be the coolest instrument we have ever developed! It has a touchscreen digital display with full-graphing capabilities which means your complete temperature history is at your fingertips - with scrolling and zoom. The FT630 is equipped with TWO K-Thermocouple probes for unmatched functionality and flexibility and is designed to work without software.  Software is only needed if you want to download the data to a PC.

  • Two K-Thermocouple Probes
  • 4.1" x 5.5" (104mm x 140mm) Touchscreen Display
  • Audio/Visual Alarms
  • Fahrenheit or Celsius
  • Flash Card Data Download ready

To learn more about Replaceable Sensors and their benefits click HERE.

NOTE: For use above 500F (260C) A203 required.

2GB SD Card not included with unit.

R700 12265
Ft630 back 12290
Ft630 left angle 12291
Ft630 rt angle 12292
Ft630 rt side 12293
Ft630 straight on 3 12294
Ft630 straight on 4 12295
Ft630 straight on 6 12296
Ft530 sdcard 1420120629 1022 136r9kj 1390

Download Images: Print Quality | Hi-Res


Important Information

DicksonWare Software is needed to communicate with this product and is sold separately.

Dickson Expert Services

Our Dickson Data Division has specially trained representatives to address the needs of customers with large installations or unique demands. Please call 888-452-4626.

  • Alarm Type Audio/Visual
  • Ambient Operating RH Conditions 0 to 95% RH non-condensing (Logger Only)
  • Ambient Operating Temperature Conditions 0 to 122F (-18 to 50C)
  • Battery Backup 12 Hrs (Re-chargeable batteries included; Hardwired)
  • Cable Details USB - Male Series A plug to 5 pin Male Series B mini plug.
  • Calibration Options N100 , N300, N400, & N520
  • Channels CH1: Temperature (F/C), CH2: Temperature (F/C); CH1: Temperature, CH2: Temperature
  • Data Capacity 32,000 (16,000 per channel)
  • Dimensions 1.4 x 8.5 x 6.9in (3.5 x 21.6 x 17.5cm)
  • Display Dimensions Height 5
  • Display Dimensions Width 6.4
  • Display Type Touchscreen
  • Display Update Rate Varies with logging interval
  • Displays Min/Max Yes
  • Download Type USB / Flash Card
  • Flash Card Option SD Card (2GB or less)
  • IP Rating 21
  • Key Features Touchscreen, multiple screen views, on-screen zoom and scroll, software optional, user customizable sample rate, temperature scales and unit of measure
  • Minimum Software Version Required 17.2.0
  • Mounting Options Mounting Bracket (Included)
  • Power Cord 6 ft
  • Power Source 120 to 240 VAC, 12 VDC (INTL adapters available)
  • Relay Type SPST, 24 VDC. 0.5A, N/O N/C
  • Remote Sensor Length 4; 4
  • Remote Sensor Type 2 K T/C with Mini Connectors
  • Required Software A016, A026, N525 (all optional)
  • Response Time 1 Minute to 63% of Full Scale
  • Sample Interval User Selectable via Time Scale (See Product Manual for more details)
  • Temperature Accuracy +/-1.8F from -22 to 122F (+/-1C from -17 to 50C)
  • Temperature Range Help-300 to 2000F (-184 to 1093C)
  • Unit Weight 1.15 lbs
  • User Calibration with SW400 Yes
  • Warranty 12-Month Limited
Why should I calibrate?

All instruments lose accuracy over time due to normal usage and the environmental conditions to which they are exposed.

How often should I calibrate?

For most applications, the recommended calibration interval is every twelve months.

N100 1-Point NIST Traceable Calibration $99.00 Add
N300 3-Point NIST Traceable Calibration $156.00 Add
N400 3-Point Ultima NIST A2LA Accredited Calibration $269.00 Add
What is NIST Calibration?

NIST stands for the National Institute for Standards and Technology. This organization is responsible for maintaining the master for different measurements, such as the standard "foot", standard, "second", or standard "pound". NIST also maintains the standard for temperature, humidity and pressure.

NIST Traceable means that the measuring standard can be traced directly back to the master standard maintained by the NIST organization.

NIST-Traceable does not tell you the measurement accuracy of a metrologty service in any detail. Only metrology services that can document their ISO 17025 standard provided data on their best measurement uncertainty.
