Blood Bank Recorder

This product has been replaced by the KT6P5

This unit is perfect for monitoring your blood supplies and tissue samples or specimen. It documents the temperature conditions directly onto a paper chart 24/7 helping you meet FDA, AABB, and JCAHO regulations.

This unit features:

Optionally, you can receive a phone call when the unit is measuring alarm conditions (see accessories tab)

  • Relay contacts to incorporate your Building Management System
  • 6in (152mm) readable chart (ordered separately)
  • Remote probe
  • Audio alarms
  • AC power with battery backup
  • User selectable recording times and temperature ranges

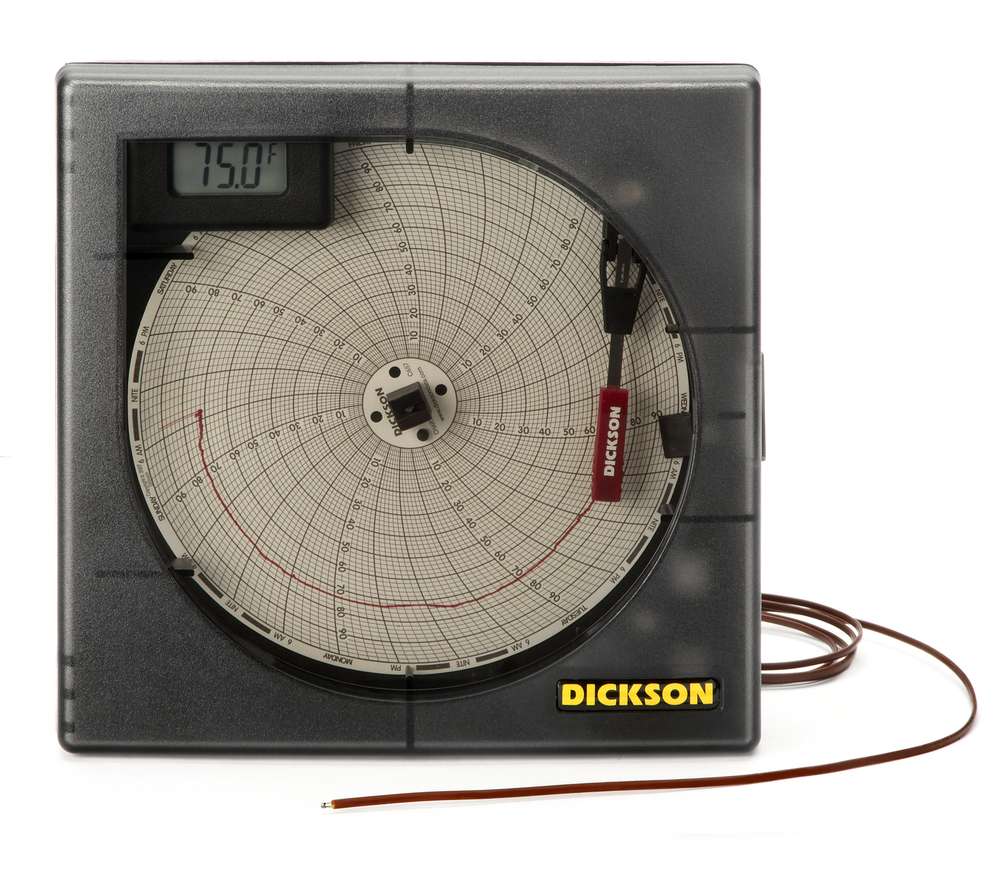

Bbr625 front 709

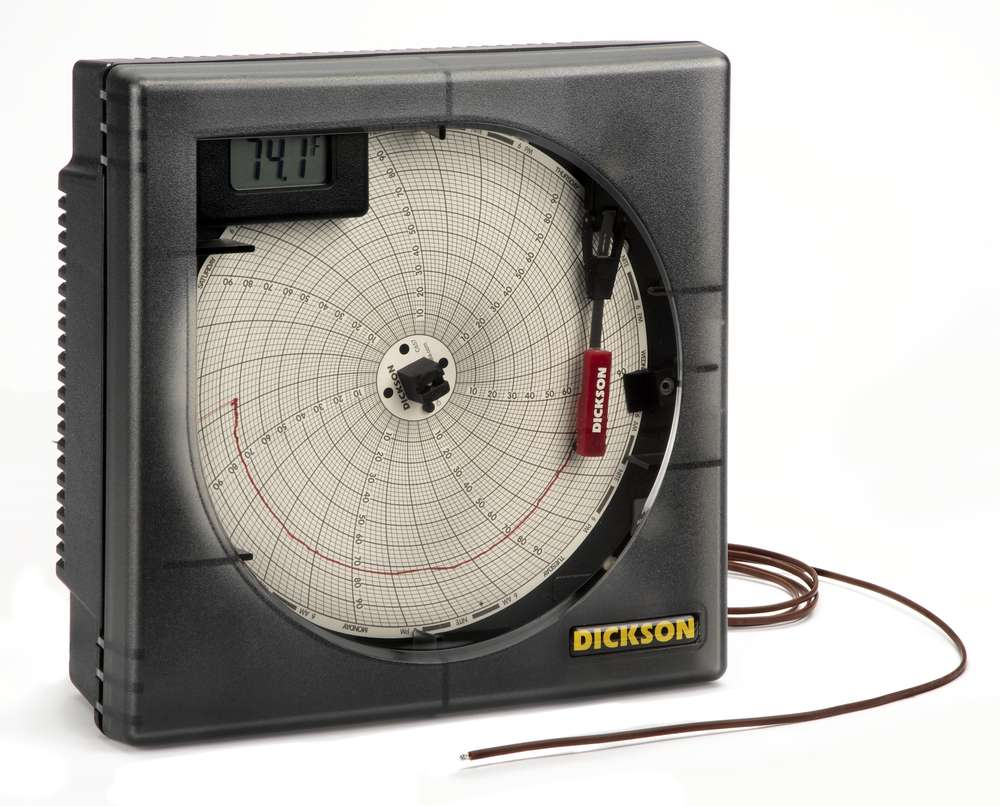

Bbr625 rt angle 542

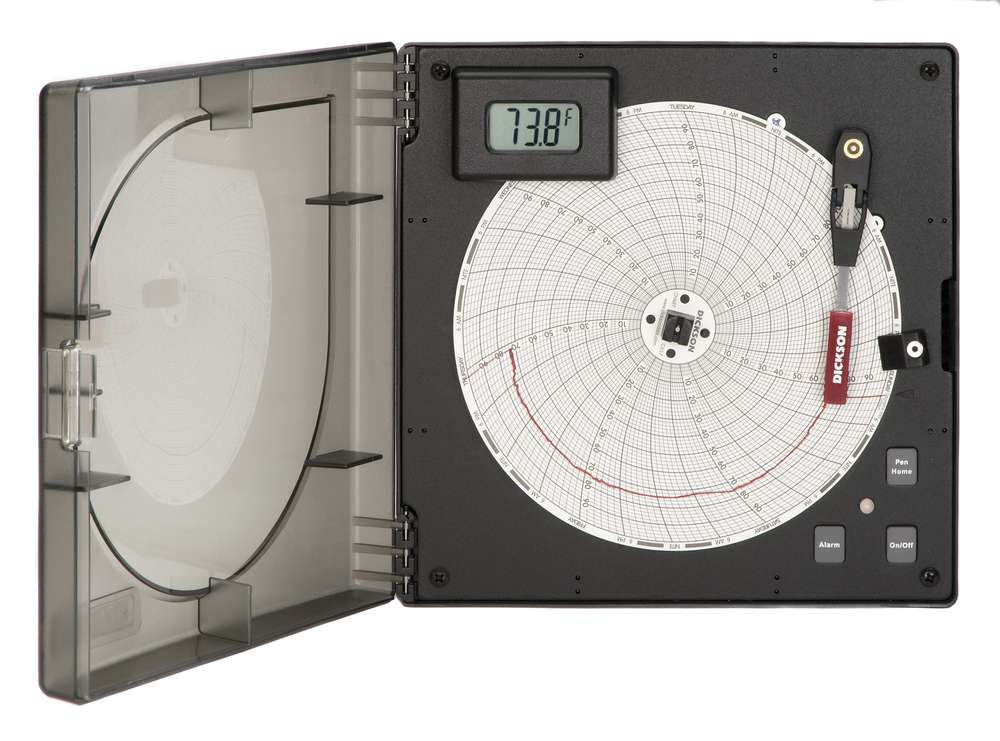

Bbr625 open w chart 501

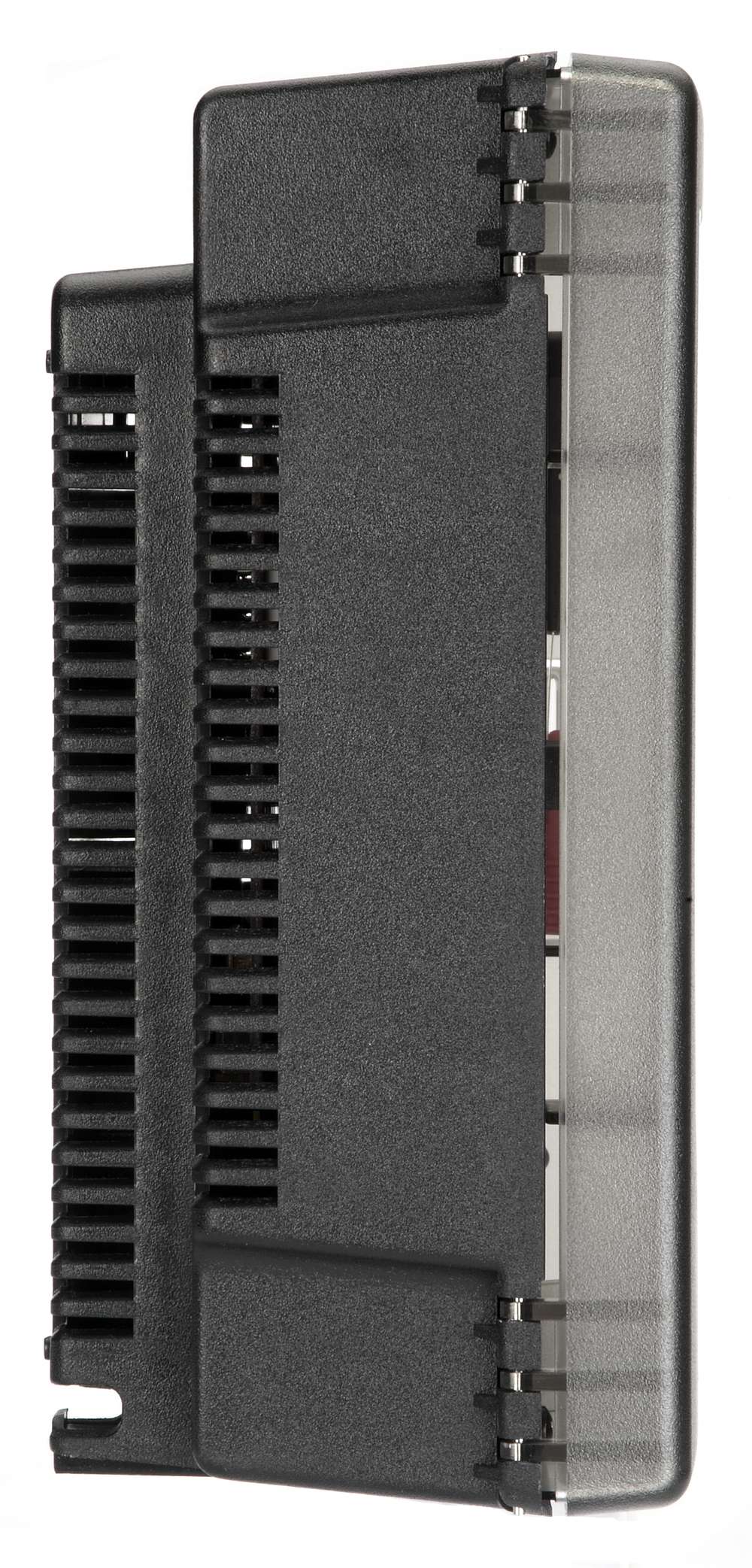

Bbr625 lft side 455

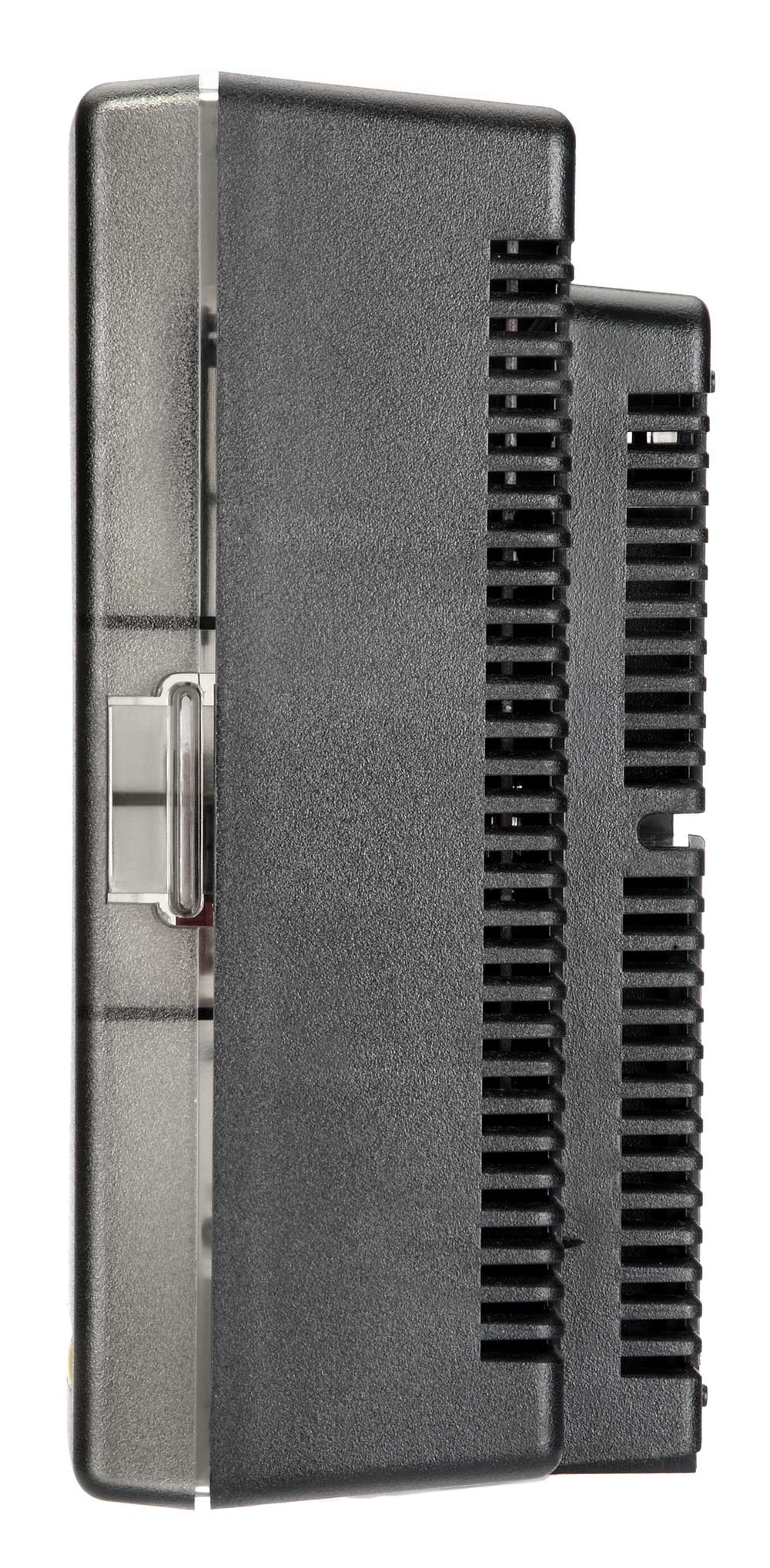

Bbr625 rt side 364

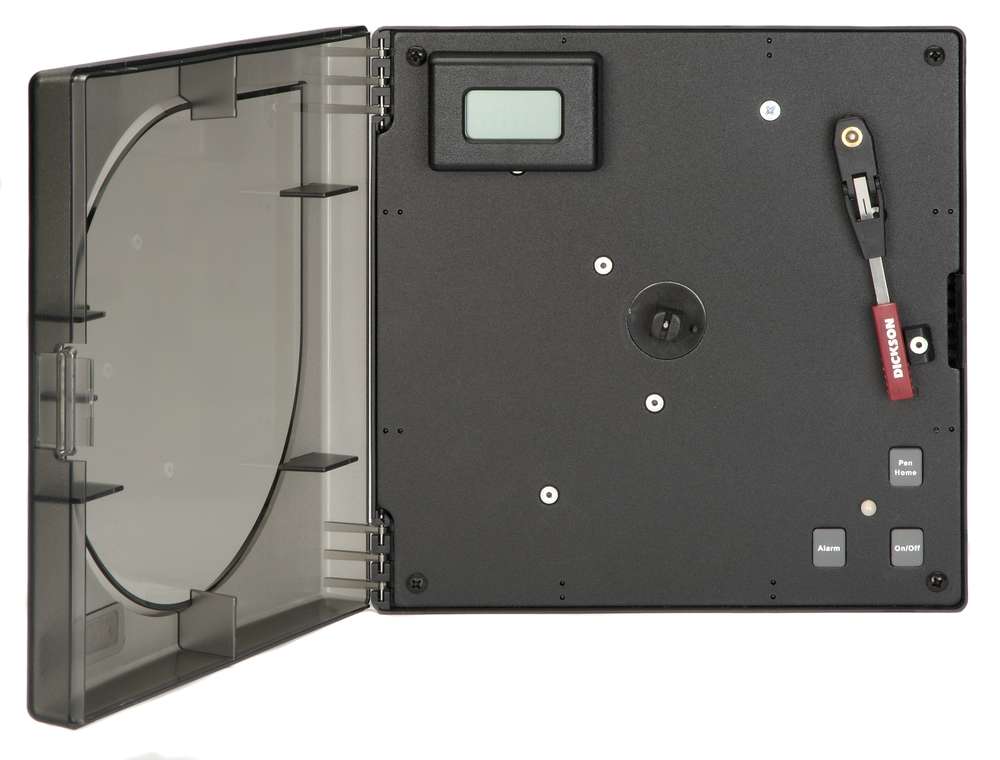

Bbr625 open no chart 272

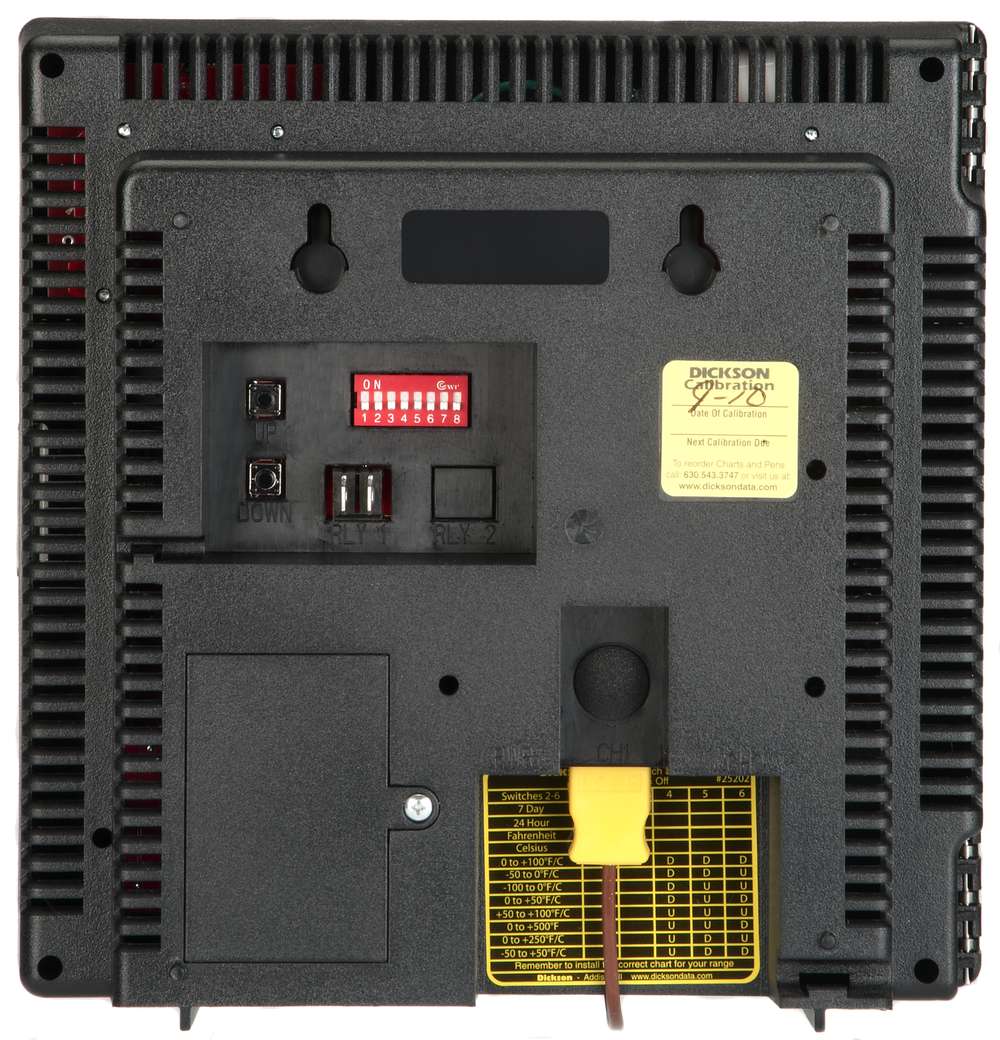

Bbr625 back 174

Download Images: Print Quality | Hi-Res


Important Information

Charts are sold separately.

Dickson Expert Services

Our Dickson Data Division has specially trained representatives to address the needs of customers with large installations or unique demands. Please call 888-452-4626.

Similar Products

KT856
Description 8" (203mm) Temperature Chart Recorder with Probe, Display, Alarm and Relays
Price $759.00
Remote Probe Icon compare check
Relay Icon compare check
Alarms
  • Audible
  • Visual
Temperature Range Icon question
  • -50 to 50F/C
  • -20 to 20F/C
  • 0 to 100F/C
  • 0 to 150F/C
  • 0 to 250F/C
  • 0 to 500F
  • 0 to 1000F/C
  • 0 to 2000F
  • 20 to 100F/C
  • 50 to 150F/C
Temperature Accuracy
  • +/-1.8F from -22 to 122F 3.8F Remaining
    (+/-1C from -30 to 50C 2.1C Remaining)
Add to Cart
  • Alarm Type Audio/Visual on High/Low Temp Limits
  • Ambient Operating RH Conditions 0-95% RH non-condensing (Recorder Only)
  • Ambient Operating Temperature Conditions 32 to 122F (0 to 50C)
  • Approvals RoHS, CE
  • Battery Backup 9V Battery Back-up. Powers unit for up to 2 days.
  • Battery Life (Avg) 48 Hours (Back-up Only)
  • Calibration Options N100, N300, N400
  • Channels CH1: Temperature
  • Chart Rotation Speed 24 Hour or 7 Day
  • Dimensions 3.25 x 7.56 x 7.56in
  • Display Dimensions Height 1.18
  • Display Dimensions Width 0.59
  • Display Resolution 0.1 Degree from -9.9 to 199.9; 1 Degree resolution above 199 and below 9.9
  • Display Type LCD
  • Enclosure Rugged Black ABS Case, Polycarbonate Door, Aluminum Dial
  • IP Rating 21
  • Included Accessories AC Adapter, Red Pen, 9V Battery, Quick Start Guide and 4" Bead-Wire Probe. *Charts sold separately.
  • Keypad Functions Power On/Off, Pen Home, Alarm
  • Mounting Options Free Standing or Wall Mounted
  • Note on Relay Type Relay does not function while unit is running on only battery power.
  • Power Cord 6 ft
  • Power Source 120 to 240 VAC, 12 VDC (INTL fittings available); AC Adapter
  • Power Status Indicator LED Indicator
  • Relay Connection Spade Lugs, Male 0.25. One Relay per Channel.
  • Relay Type SPST, 24 VDC, 0.5 A, N/O
  • Remote Sensor Length 4
  • Remote Sensor Type 1 K T/C with Mini Connector
  • Response Time 30 Seconds to 63% of Full Scale
  • Temperature Accuracy +/-1.8F from -22 to 122F 3.8F Remaining (+/-1C from -30 to 50C 2.1C Remaining)
  • Temperature Range Help-100 to 0F/C; -50 to 0F/C; -50 to 50F/C; 0 to 50F/C; 0 to 100F/C; 0 to 250F/C; 0 to 500F; 50 to 100F/C
  • Temperature Sensor Remote Probe
  • Unit Weight 9 lbs
  • Units/Pkg 1
  • Warranty 12-Month Limited
Why should I calibrate?

All instruments lose accuracy over time due to normal usage and the environmental conditions to which they are exposed.

How often should I calibrate?

For most applications, the recommended calibration interval is every twelve months.

N100 1-Point NIST Traceable Calibration $99.00 Add
N300 3-Point NIST Traceable Calibration $156.00 Add
N400 3-Point Ultima NIST A2LA Accredited Calibration $269.00 Add
What is NIST Calibration?

NIST stands for the National Institute for Standards and Technology. This organization is responsible for maintaining the master for different measurements, such as the standard "foot", standard, "second", or standard "pound". NIST also maintains the standard for temperature, humidity and pressure.

NIST Traceable means that the measuring standard can be traced directly back to the master standard maintained by the NIST organization.

NIST-Traceable does not tell you the measurement accuracy of a metrologty service in any detail. Only metrology services that can document their ISO 17025 standard provided data on their best measurement uncertainty.

$32.00
Universal Plug Kit for AC Adapter

Set of Three International Power Plugs for AC Adapter

$41.00
Temperature Probe

Replacement Bead Wire Temperature Probe

$11.00
9V Battery

9V Battery

$179.00
Thermocouple Extension

K-Thermocouple 100' (30m) Extension Cable

$52.00
Probe Extension

K-Thermocouple 10' (3m) Extension Cable

$156.00
Shielded Immersion Probe

15' (4.5m) Shielded Thermocouple with 4" (10cm) stainless steel tip

$79.00
Piercing Probe

4" (10cm) Thermocouple Handled Piercing Probe

$499.00
Sensaphone Dialer

Remote Monitoring Unit - calls 4 numbers

$32.00
Glass Beads Bottle

Bottle of Glass Bead Solution - Dampen Temperature Swings.

$125.00
Temperature Probe

6" (15cm) High Temperature Immersion Probe

C651 6" (152mm) Chart 7-Day, -50 to 50 F/C $48.00 Add
C652 6" (152mm) Chart 24-Hour, -50 to 50 F/C $48.00 Add
C657 6" (152mm) Chart 7-Day, 0 to 100 $48.00 Add
C658 6" (152mm) Chart 24-Hour, 0 to 100 $48.00 Add
C661 6" (152mm) Chart 7-Day, 0 to 500 F $48.00 Add
C662 6" (152mm) Chart 24-Hour, 0 to 500 F $48.00 Add
P222 6 Red Pens $52.00 Add
For more information on this product and other 6" Temperature Chart Recorders products see the 6" Temperature Chart Recorders page.
