This product has been replaced by the FT660

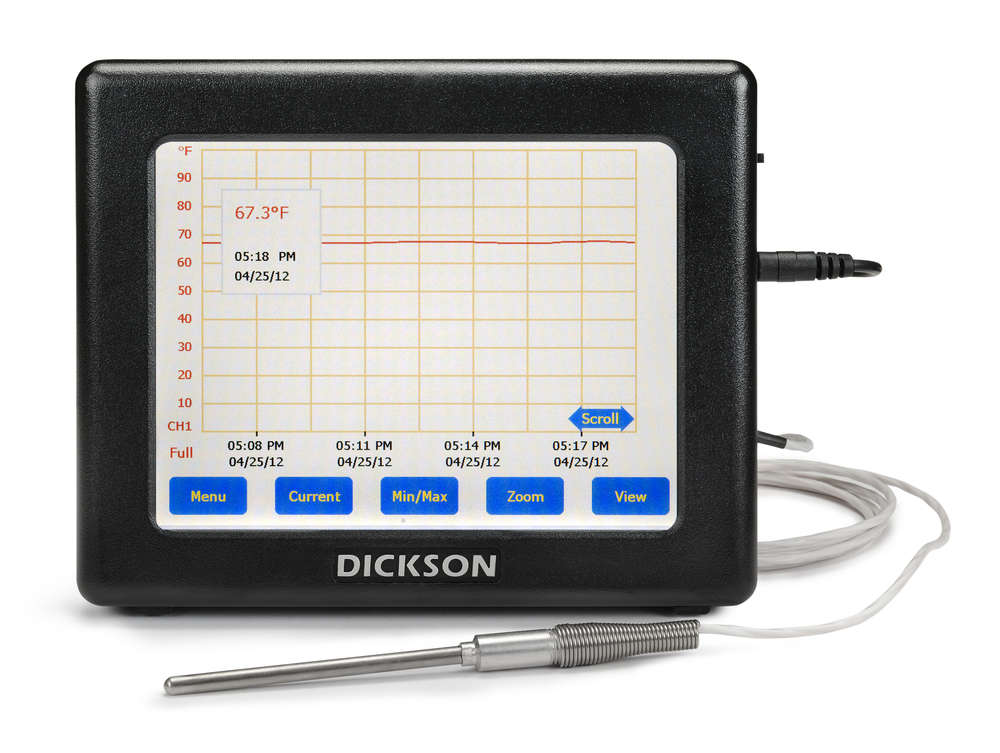

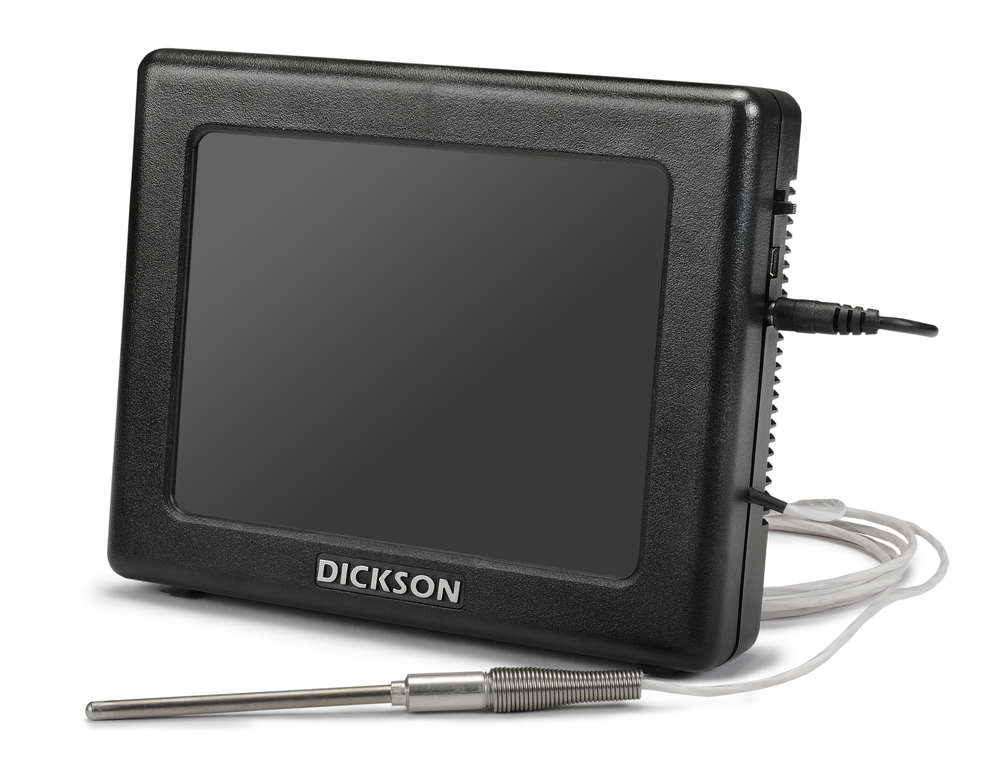

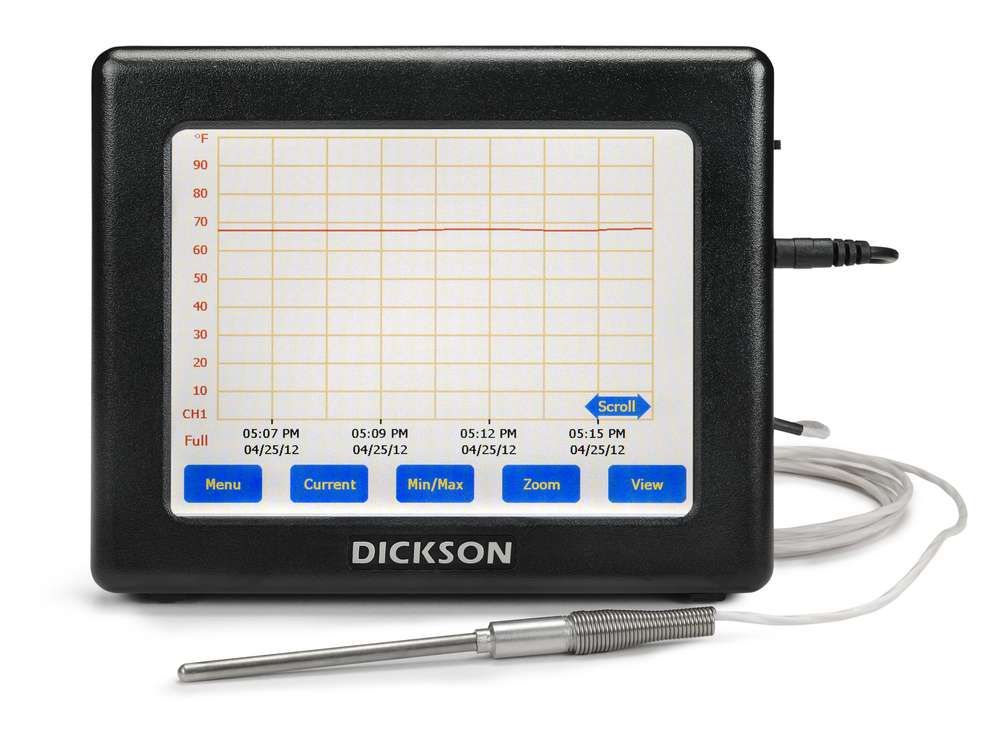

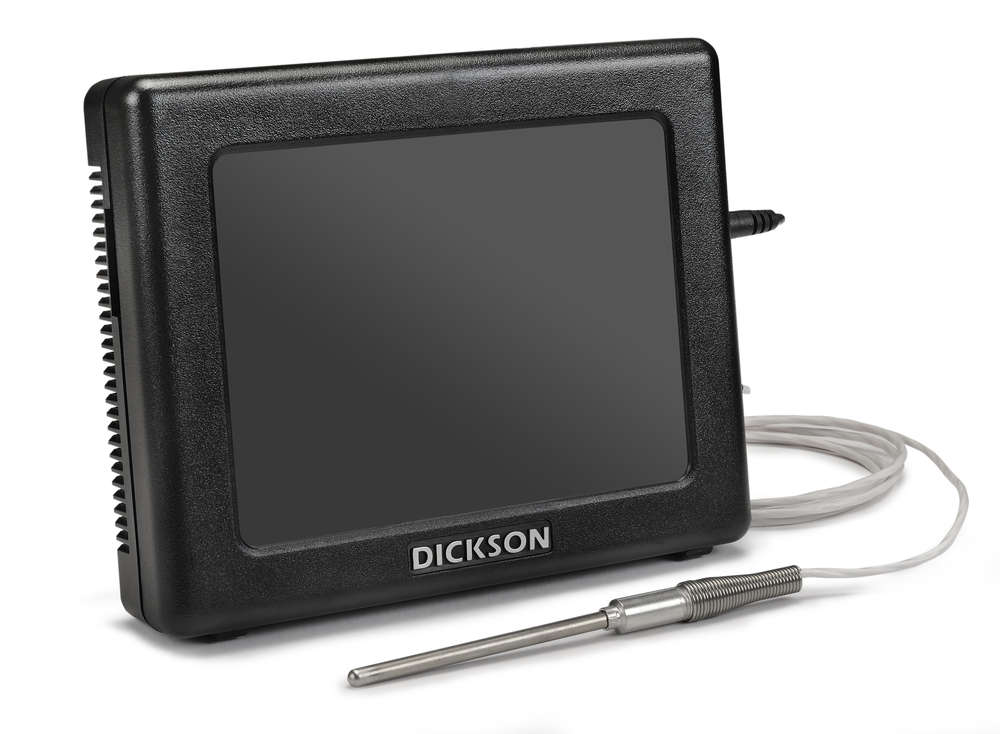

This may be the coolest instrument we have ever developed! It has a touchscreen digital display with full-graphing capabilities which means your complete temperature history is at your fingertips - with scrolling and zoom. The FT560 is equipped with a Resitance Temperature Probe (RTD). It is great for high accuracy accoss a wide temperature range. With high functionality, this unit is designed to work without software. Software is only needed if you want to download the data to a PC.

One high accuracy RTD probe
4.1" x 5.5" (104mm x 140mm) Touchscreen Display
Audio/Visual Alarms
Fahrenheit or Celsius
Flash Card Data Download ready

Download Images: Print Quality | Hi-Res

Important Information

DicksonWare Software is needed to communicate with this product and is sold separately.

Support Information

Dickson FT560 Product Manual

Dickson Expert Services

Our Dickson Data Division has specially trained representatives to address the needs of customers with large installations or unique demands. Please call 888-452-4626.

Specifications
Calibrations
Accessories
Support

Ambient Operating RH Conditions 0 to 95% RH non-condensing (Logger Only)
Ambient Operating Temperature Conditions 0 to 122F (-18 to 50C)
Battery Backup 4 Hrs (Re-chargeable batteries included; Hardwired)
Cable Details USB - Male Series A plug to 5 pin Male Series B mini plug.
Calibration Options N100 , N300, N400, & N520
Channels CH1: Temperature; CH1: Temperature (F/C)
Data Capacity 32,000
Dimensions 1.5 x 7.3 x 6.1in (3.8 x 18.5 x 15.5cm)
Display Dimensions Height 5.5
Display Dimensions Width 4.1
Display Type Touchscreen
Display Update Rate Varies with logging interval

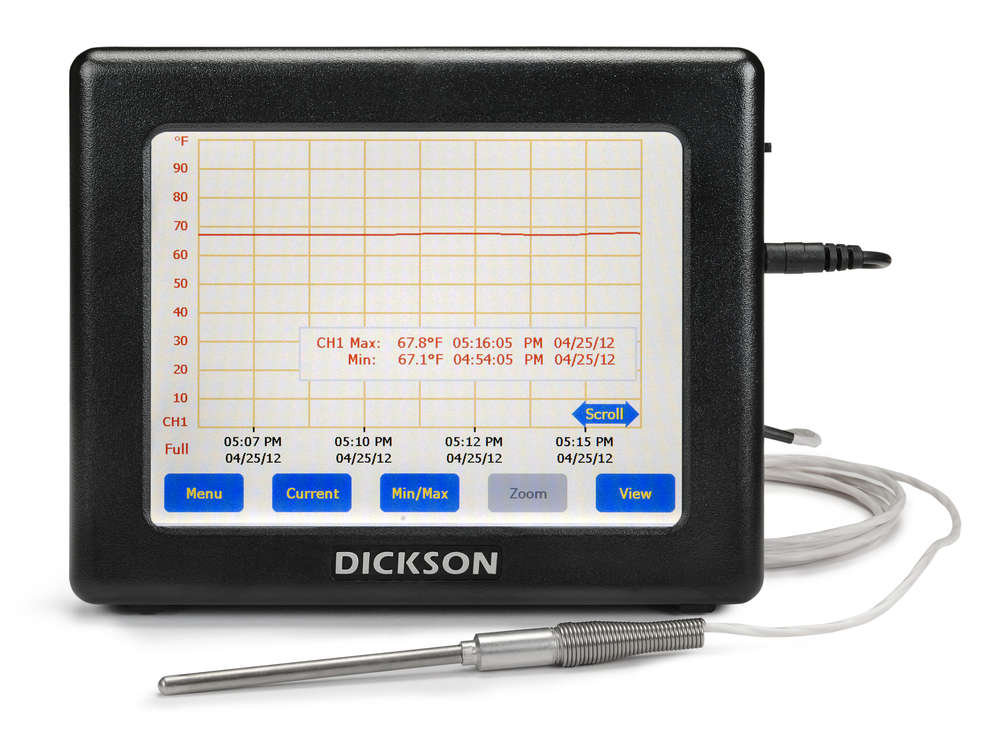

Displays Min/Max Yes

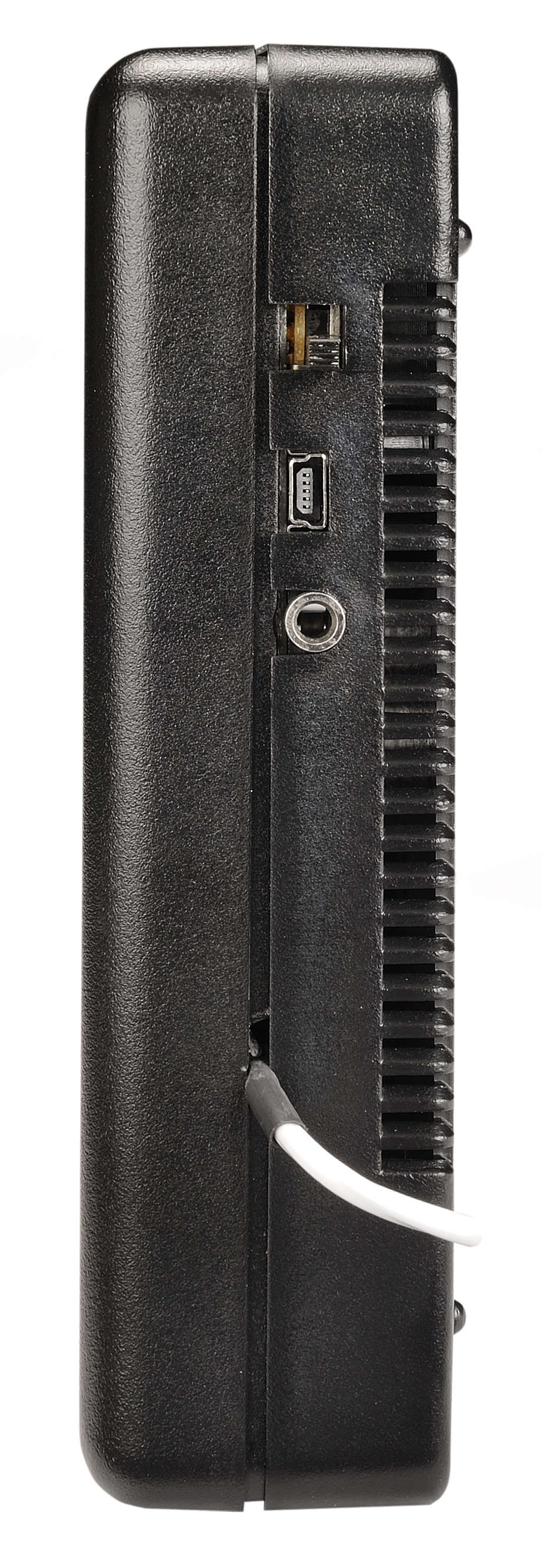

Download Type USB / Flash Card

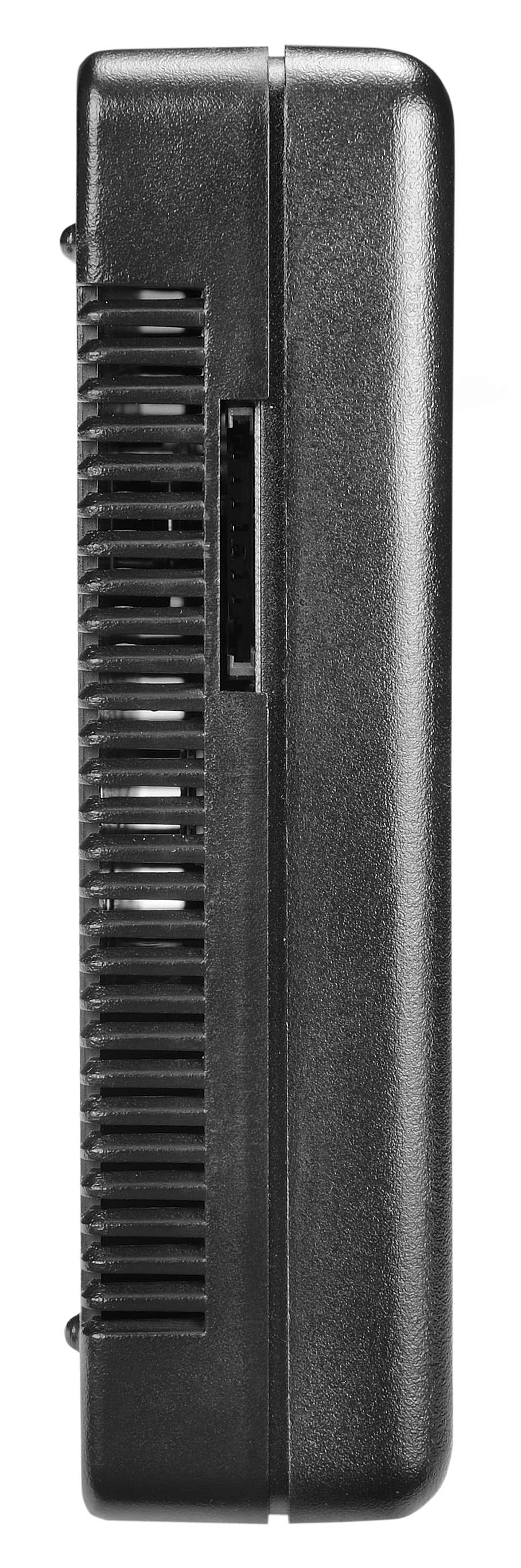

Flash Card Option SD Card (2GB or less)
IP Rating 21

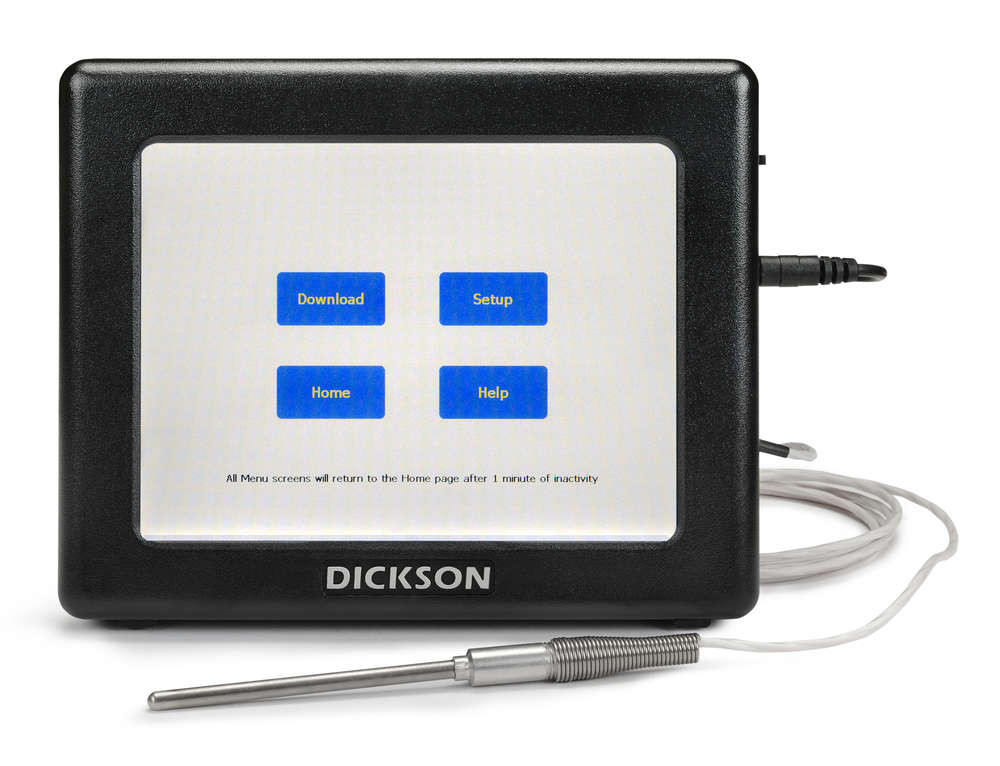

Key Features Touchscreen, multiple screen views, on-screen zoom and scroll, software optional, user customizable sample rate, temperature scales and unit of measure

Minimum Software Version Required 17.6.0
Mounting Options Keyhole
Power Cord 6 ft
Power Source 120 to 240 VAC, 12 VDC (INTL adapters available)
Remote Probe Dimensions 3" length; .101" diameter (cord only); .189" (probe tip only); .441" (probe strain relief between cable and tip)
Remote Sensor Length 6 ft
Remote Sensor Type Resistance Temperature Sensure (RTD) - Hard wired
Required Software A016, A026, N525 (all optional)
Response Time 1 Minute to 63% of Full Scale
Sample Interval User Selectable
Temperature Accuracy +/-1.2F from -20 to 120F 1.8F (+/-1C from -30 to 50C)
Temperature Range -148 to 350F (-100 to 176C)
Temperature Sensor Type Resistance Temperature Sensor - Hard wired
Unit Weight 9 lbs
User Calibration with SW400 Yes
Warranty 12-Month Limited

Why should I calibrate?

All instruments lose accuracy over time due to normal usage and the environmental conditions to which they are exposed.

How often should I calibrate?

For most applications, the recommended calibration interval is every twelve months.

N100	1-Point NIST Traceable Calibration	$99.00	Add
N300	3-Point NIST Traceable Calibration	$156.00	Add
N400	3-Point Ultima NIST A2LA Accredited Calibration	$269.00	Add

What is NIST Calibration

NIST stands for the National Institute for Standards and Technology. This organization is responsible for maintaining the master for different measurements, such as the standard "foot", standard, "second", or standard "pound". NIST also maintains the standard for temperature, humidity and pressure.

NIST Traceable means that the measuring standard can be traced directly back to the master standard maintained by the NIST organization.

NIST-Traceable does not tell you the measurement accuracy of a metrologty service in any detail. Only metrology services that can document their ISO 17025 standard provided data on their best measurement uncertainty.
