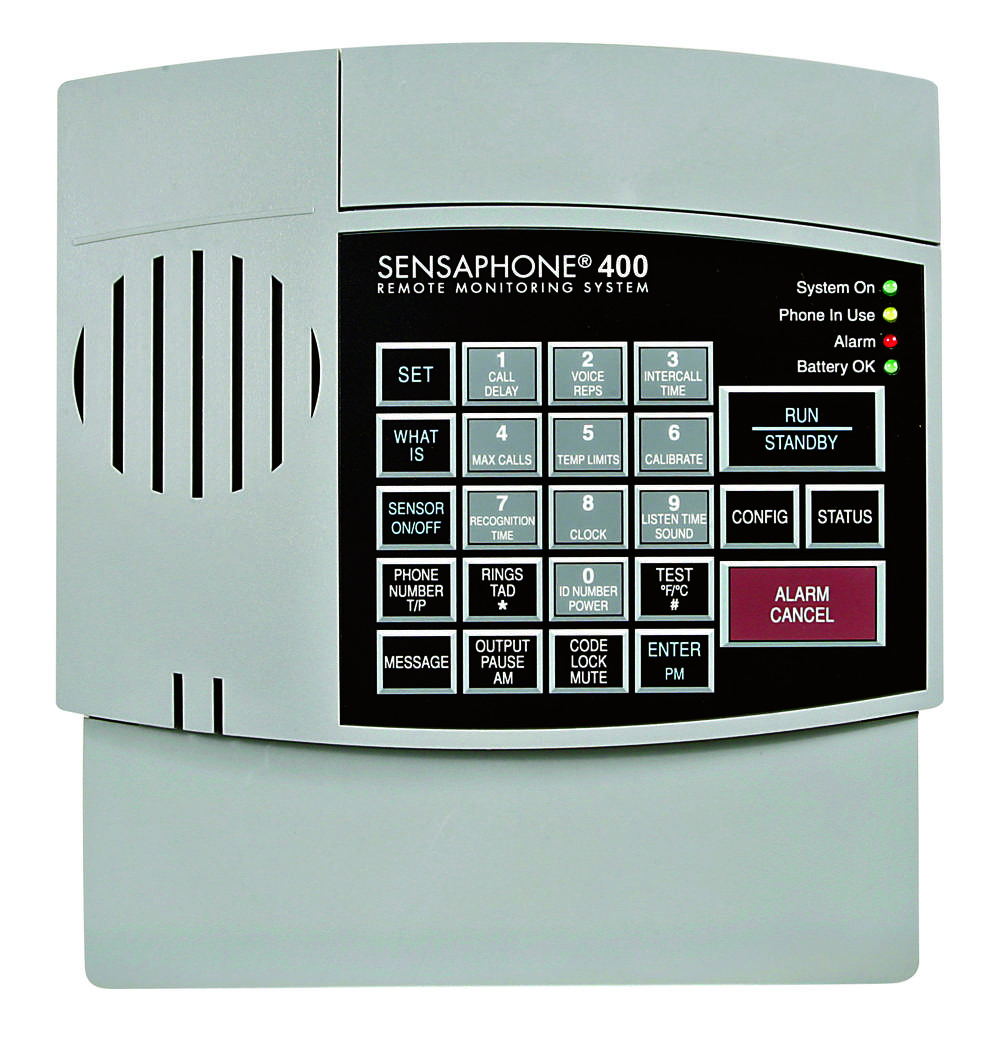

Sensaphone Dialer
Receive calls when your unit detects out-of-range conditions! The sensaphone allows you to be notified of conditions outside of your desired ranges when no one can be around to check.
Get the remote environmental monitoring that you need.
- Dials up to four numbers
- Monitors temperature, sound, and power failure
- Additional add-on sensors availabe
- Phone in for current conditions reports
- No phone or electrical changes required
Download Images: Print Quality | Hi-Res
- Ambient Operating Temperature Conditions 32 to 120F (0 to 50C)
- Approvals NRTL listed for compliance with UL standard 1459
- Contacts 4
- Dimensions 7.5 x 2 x 8.5in
- Power Cord 6 ft
- Power Source 120 VAC 60Hz 15W
- Telephone Interface FCC approved RJ-11 plug-in modular connector
-
Temperature Range
-20 to 150F (-30 to 65C)
Frequently Asked Questions
- Why did the unit fail to dial out? (Models D118/D119)
- Why won't the unit answer when called for a status report or alarm acknowledgement.
- Why can't anything be heard at the installation site?
- Why won't the unit audibly recite its alarm message when the call is answered?
- Why does the unit and a telephone anwering device (sharing the same line) answer incoming calls simultaneously?
- Why won't the unit read the temperature sensor or program temperature limits?
- Why are temperatures stuck?
- Why are temperature readings inaccurate?
- Why is the alarm status of an alert input incorect?
- Why do I receive false power out alarms?
- Why won't the unit recognize power failures?
- Why won't the unit recognize any alarm?
- How long will the batteries last when in battery backup?
Why did the unit fail to dial out? (Models D118/D119)
- The telephone number may be incorrectly programmed.
- Tone or Pulse (the current dialing method) is not compatible with the telephone line on which the D118/D119 is installed.
- Recognition time is too long. An alert condition does not remain in effect long enough to become a valid alarm.
- Max number of calls set to zero. It's a good idea to set your Max calls to at least equal the number of dial-out telephone numbers programmed.
- The unit must be connected to a standard (2-wire analog) telephone line, not a digital extension to a phone system. If the unit will not dial out and the factors previously listed have been ruled out, try connecting the unit to standard residential telephone line.
Why won't the unit answer when called for a status report or alarm acknowledgement.
- "Rings Until Answer" is incorrectly programmed.
- Model D118/D119 connected to an incompatible telephone line.
Why can't anything be heard at the installation site?
- The local voice mute feature is in effect.
Why won't the unit audibly recite its alarm message when the call is answered?
- Voice Reps is set to zero. Change to 1 or greater.
Why does the unit and a telephone anwering device (sharing the same line) answer incoming calls simultaneously?
- The unit's number of Rings Until Answer is set to equal the number of rings set for the telephone answering device.
Why won't the unit read the temperature sensor or program temperature limits?
- The input isn't configured to read a temperature sensor.
Why are temperatures stuck?
The temperature sensor has been disconnected or has broken wires.
Why are temperature readings inaccurate?
- The temperature sensor may be affected by a source of ambient heat (ie., direct sunlight, or heat duct proximity).
- Temperature may require calibration.
Why is the alarm status of an alert input incorect?
- Incorrect input normality
Why do I receive false power out alarms?
- Programmed recognition Time is too short. AC power is often subjuect to brief interruptions.
Why won't the unit recognize power failures?
- Batteries are either installed incorrectly or drained.
- Recognition time setting is too long.
Why won't the unit recognize any alarm?
- Inputs are disabled.
- Programmed Recognition Time is too long.
